1GE xPON ONT P3（1GE）

P3 supports the up-link and down-link symmetric 1G bps transmission rate, providing users with good QOS guarantee and flexible ...

Current position：HOME > PON

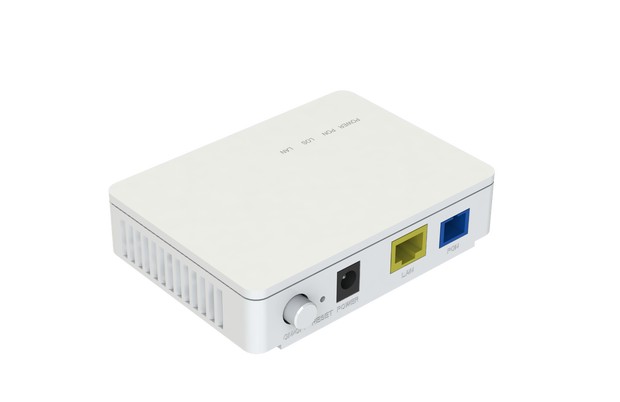

1GE xPON ONT P3（1GE）

Overview        P3 supports the up-link and down-link symmetric 1G bps transmission rate, providing users with good QOS guarantee and flexible bandwidth al. Ethernet business and IP integrated services. providing users with more efficient data transmission guarantee.
       P3 has high reliability and provides quality of service guarantee, easy management, flexible expansion and networking. it is fully compliant to technical regulations such the ITU-T G984.x and IEEE802.3ah technical standards and has good compatibility with third party manufacturers OLT. Features         ● Dual mode(Can access EPON/GPON OLTs).
        ● Plug and play, integrate auto detection, auto configuration and auto firmware upgrading.
        ● Support downstream 2.5Gbps and upstream to 1.25Gbps with transmission distance to 20Km(GPON Mode).
        ● Fiber access and gigabit port provide incredibly fast transfer speeds.
        ● Supports OMCI (ONT Management Control Interface) and OAM remote management.
        ● Support IPv4/ IPv6 IGMP snooping and MLD snooping.
        ● Support bridge, route and bridge/route mixed mode. Technical Specifications

General

Protocol Standards

ITU-T G.984.x,IEEE802.3ah

Distance

20Km Max

Data Rates

1 GPON/EPON auto-adaptive interface, SC

single-mode/single-fiber

Work as GPON:Upstream rate 1.25Gbps

Downstream rate 2.5Gbps

Work as EPON:Upstream rate 1.25Gbps

Downstream rate 1.25Gbps

PON TX Power

1~5dBm（1310nm）

PON RX sensitivity

<-28dBm（1490nm）

Power

≤ 3W

Hardware

Interfaces

1xSC/PC or 1xSC/APC (optional)

1 x 10/100/1000Mbps LAN port

Buttons

Reset Button

Power Supply

DC 12V 0.5A

Dimensions (W X D X H)

104*70*22mm(length*width*height)

Environment

Operating Temperature

-10°C~50°C

Storage Temperature

-40°C~70°C

Operating Humidity

10%~90%, non-condensing

Storage Humidity

5%~90% non-condensing

Certifications

CE, RoHS

Software

WAN Type

Dynamic IP/Static IP/PPPoE

DHCP

Server, Client, DHCP Client List, Address

Reservation

Quality of Service

Bandwidth Control

Port Forwarding

Virtual Server, Port Triggering, UPnP, DMZ

VLAN

Port-based VALN

GVRP

IEEE802.1Q VLAN

Access Control

Local Management Control, Host List, Access Schedule, Rule Management

Firewall Security

DoS, SPI Firewall

IP Address Filter/MAC Address Filter/Domain Filter

IP and MAC Address Binding

Management

Various management modes such as Web,TELNET

Local Management

Remote Management

Internet Protocol

IPv4, IPv6

Package Contents

Package Contents

1 x xPON ONT

1 x Quick Installation Guide

1 x Power Adapter
